Cryotherapy GlacierX 2.0

The Air Relax GlacierX 2.0 is a next-generation full-body cryotherapy chamber engineered for professional recovery, rehabilitation, and wellness. Using precision liquid nitrogen cooling technology, it rapidly reaches temperatures between –110 °C and –190 °C to trigger the body’s natural healing and regenerative processes.

Each 3-minute session enhances circulation, reduces inflammation, accelerates muscle recovery, and promotes mental and physical rejuvenation. Designed for clinics, spas, and athletic centers, the GlacierX 2.0 combines intelligent automation, a 7-inch touchscreen control, and a sleek, insulated build for maximum safety, comfort, and operational efficiency; offering a premium client experience with fast ROI for professionals.

£34,950.00

Tax included.

Technical Specifications & ROI — Air Relax GlacierX 2.0 Cryotherapy Suite

Model: Air Relax GlacierX 2.0 (Professional Full-Body Cryotherapy Chamber)
Application: Commercial-grade cryotherapy for sports recovery, rehabilitation, beauty, and wellness facilities
Cooling System: Direct liquid nitrogen (LN₂) injection with precision vapor distribution
Operating Temperature Range: –110 °C to –190 °C (adjustable via PLC control)
Pre-Cooling Time: Approx. 1 minute before use
Session Duration: 1–3 minutes (average session: 3 min)
Nitrogen Consumption: ≈ 1.3 L/min → ≈ 4 L total per 3-minute session

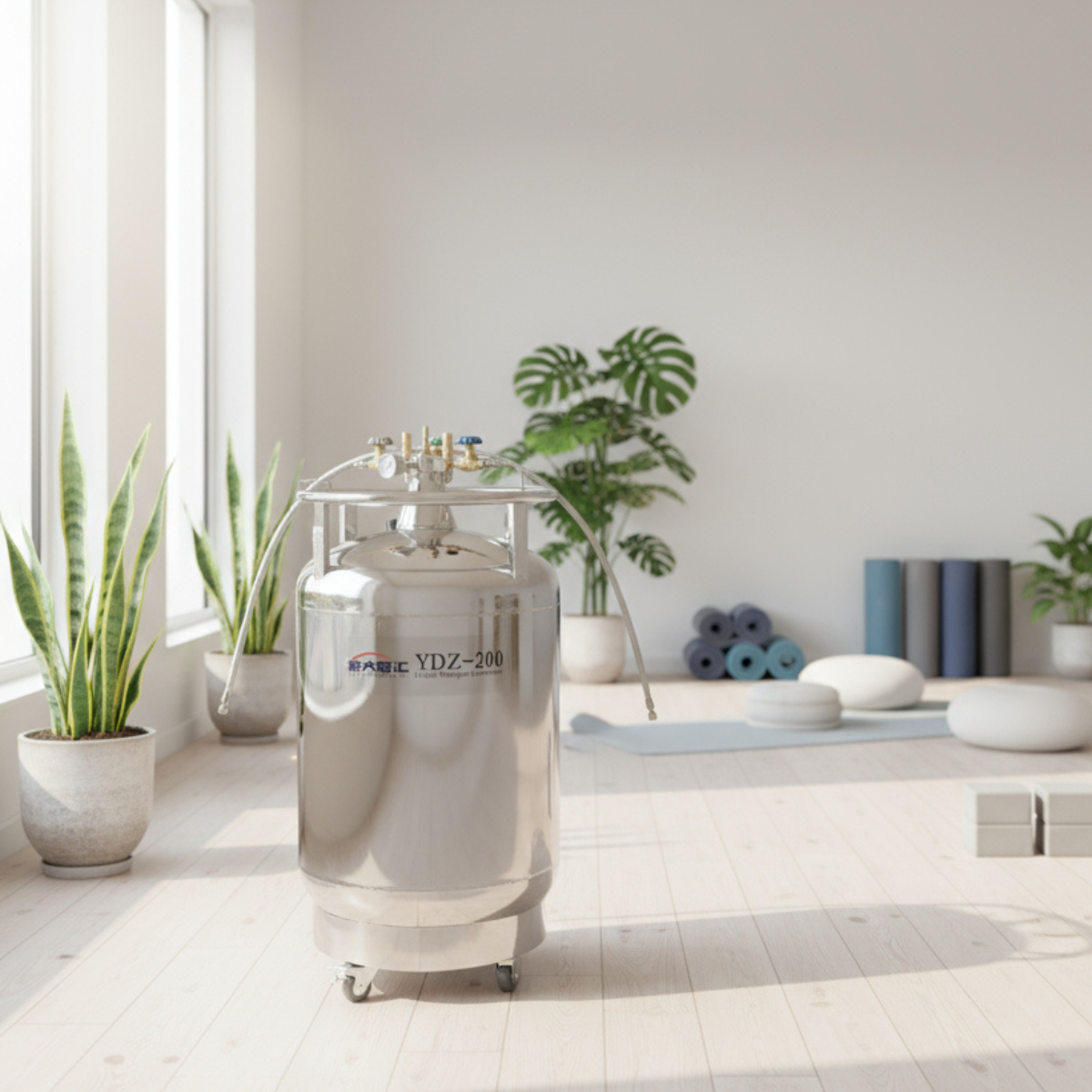

Nitrogen Supply: 200 L self-pressurized stainless-steel LN₂ tank (mirror-polished, mobile with casters)
Tank Specifications: Volume 200 L | Empty 130 kg | Full 292 kg | Standard 0.05 MPa | Max 0.09 MPa | Safety valves @ 0.099 / 0.15 MPa | Infusion 10 L/min
Tank Accessories: Dual safety valves, booster valve, inlet/discharge valves, vent valve, float level gauge, pressure gauge, 2 m stainless-steel hose
Chamber Dimensions: 1 400 mm (W) × 1 100 mm (D) × 2 400 mm (H)
Net Weight: ≈ 350 kg (chamber only) | Gross ≈ 530 kg (with tank & packaging)
Construction: Carbon-steel frame, insulated composite shell, synthetic-leather interior, LED ambient lighting
Lift System: Hydraulic height adjustment (200 kg capacity)
Control Interface: 7″ color touchscreen + PLC automation
Operating Cycle: Automatic 3-stage — Pre-Cool → Treatment → Ventilation (purge)
Power Requirements: AC 110 / 220 V • 1.5 kW max • ≈ 0.03 kWh/session
Noise Level: < 50 dB (quiet operation)
Safety Systems: O₂ monitor (auto purge < 19.5%), temperature & door sensors, emergency stop, auto shut-off, dual tank relief valves
Certifications: CE • EN 13445 / EN 13458 (Pressure Equipment) • EN 55014 / EN 61000 (EMC) • Test Report HTT180708075ER • ECM Cryogenic Tank Approval (valid 2026)
Room Requirements: ≥ 8 m² floor area | Ceiling ≥ 2.8 m | Door ≥ 1.2 m | Vent Ø 120–125 mm to outdoors | Recommended 400 CFM fan
Ambient Conditions: +15 °C to +24 °C | 30–60 % humidity | Flat floor < 0.5 % slope
Lighting: Integrated ambient LED illumination for user comfort and visual appeal
Accessories Included: 200 L LN₂ tank + connection hose, pressure gauge, valves, training manual, operator guide, EU installation support

Operational Efficiency & Cost Analysis

Nitrogen Use per Session: ≈ 4 L LN₂ for 3-minute treatment
LN₂ Cost per Litre (Europe avg): €0.50 – €1.50 depending on region & supply volume
Estimated Cost per Session: €2 – €6 consumable expense (4 L × €0.50–€1.50)
200 L Tank Capacity: ≈ 50 sessions per fill (200 L ÷ 4 L per session)
Typical Retail Price per Session: €70 – €100 (average market rate in EU wellness & recovery centers)
Gross Revenue per Tank Fill: ≈ €3 500 – €5 000 (50 sessions × €70–€100)
Net Profit per Tank (after LN₂ cost): ≈ €3 200 – €4 800 per fill
Average Daily Throughput: 10–20 sessions (under standard clinic operation)
Potential Weekly Revenue: €4 900 – €10 000 (70–100 sessions @ €70–€100 each)
Estimated Monthly Revenue: €20 000 – €40 000 depending on volume and pricing structure
Approx. ROI Period: 3 – 6 months for active clinics (assuming €25 000–€30 000 equipment cost)
Profit Margin per Session: Up to 90 % gross margin (excluding labor & rent overheads)
Operational Highlights: Low energy use • No refrigerant maintenance • Small footprint • Fast client turnaround

Summary — High Performance, Low Operating Cost

The Air Relax GlacierX 2.0 Cryotherapy Suite is designed not only for exceptional therapeutic results but also for rapid business return. Each 3-minute session consumes just ~4 L of liquid nitrogen, costing under €6, yet commands €70–€100 retail pricing. With up to 50 sessions per tank and minimal electricity usage, operators can achieve several thousand euros of profit per refill cycle. Clinics typically reach ROI in under six months, benefiting from strong customer retention and recurring session packages. The GlacierX 2.0 combines engineering precision, efficiency, and profitability—a proven investment for professional recovery facilities.

Air Relax GlacierX 2.0 Cryotherapy Benefits

See CRYOTHERAPY TREATMENT GUIDE below for full application recommendations

Focus Area	Primary Benefit
Sports Recovery	Accelerates muscle repair, decreases soreness, and reduces downtime after training or competition
Inflammation Reduction	Lowers cytokine activity and swelling, supporting faster tissue healing and recovery
Pain Relief & Arthritis Support	Relieves chronic and acute joint or muscle pain through cold-induced vasoconstriction
Injury Rehabilitation	Improves circulation and oxygenation for post-surgery and physiotherapy recovery
Fibromyalgia & Chronic Pain	Reduces nerve sensitivity, improves mobility, and alleviates fatigue
Metabolic Activation	Stimulates brown-fat metabolism and increases calorie burn (up to 500 kcal per session)
Beauty & Skin Rejuvenation	Tightens skin, boosts collagen production, and improves tone and texture
Stress Relief & Mood Boost	Triggers endorphin and serotonin release, improving focus, mood, and emotional balance
Sleep Optimization	Balances cortisol levels, supporting deeper and more restorative sleep
Circulation & Lymphatic Flow	Enhances blood flow and detoxification for systemic wellness and faster recovery
Post-Exercise Recovery	Flushes lactic acid and reduces muscle stiffness following intense workouts
Immune System Support	Activates white-blood-cell production and strengthens immune response
Post-Procedure Calming	Reduces swelling, redness, and discomfort after dermatologic or cosmetic treatments
Longevity & Anti-Aging	Promotes cellular regeneration, improves elasticity, and combats oxidative stress
Energy & Vitality Boost	Increases mitochondrial efficiency and cellular energy (ATP production)
Mental Clarity & Focus	Enhances oxygen supply to the brain, promoting alertness and concentration
Weight & Body Shaping Programs	Assists fat-burning and metabolic regulation as part of holistic wellness plans
Post-Surgery Support	Minimizes bruising and swelling for improved healing and comfort
Professional Clinic Value	Premium treatment with high ROI, attracting new clients and expanding service offerings

Technical Specifications — Air Relax GlacierX 2.0 Cryotherapy Suite

Model: Air Relax GlacierX 2.0 Cryotherapy Suite
Application: Full-body cryotherapy for sports recovery, rehabilitation, wellness, and beauty centers
Operating Temperature Range: –110 °C to –190 °C (adjustable)
Cooling System: Direct-injection liquid nitrogen (LN₂) vapor circulation with nitrogen vortex distribution
Temperature Control: PLC-regulated precision cooling with 7-inch touchscreen interface
Pre-Cooling Time: Approx. 1 minute before each session
Session Duration: 1–3 minutes (typical 3 minutes)
Nitrogen Consumption: ≈ 1.3 L/min (≈ 4 L per 3-minute session)
Typical Operating Cost per Session: €2 – €6 (based on €0.50 – €1.50 per L LN₂)
Nitrogen Flow Rate: 10 L/min (max)
Nitrogen Supply: 200 L self-pressurized LN₂ tank (stainless steel, mirror-polished finish)
Tank Dimensions: φ 706 mm × 1 465 mm (H)
Tank Weight: 130 kg (empty) • 292 kg (full)
Tank Pressure: Standard 0.05 MPa • Max 0.09 MPa
Safety Valves: Primary 0.099 MPa • Secondary 0.15 MPa (dual valve protection)
Tank Features: Casters for mobility, booster valve, inlet/discharge valves, vent valve, float level gauge, pressure gauge, 2 m stainless-steel transfer hose
Control Interface: 7″ full-color touchscreen display with automated Pre-Cool → Cool → Ventilation cycle
Safety Monitoring: O₂ sensor (< 19.5 % threshold auto ventilation), temperature sensor, door lock sensor, emergency stop button, auto shut-off
Automation: 3-phase PLC system for continuous cycle control and data logging
Lift System: Hydraulic elevator with auto height adjustment (up to 200 kg user weight)
Noise Level: < 50 dB (quiet operation)
Materials: Carbon-steel body • High-density insulation • Interior synthetic leather lining • Tempered acrylic top ring
Lighting: Ambient LED illumination for enhanced user comfort and visual impact
Power Requirements: AC 110 V / 220 V • 1.5 kW (max load)
Average Energy Use: ≈ 0.03 kWh per session (excluding LN₂ cooling)
Product Dimensions: 1 400 mm (W) × 1 100 mm (D) × 2 400 mm (H)
Net Weight: ≈ 350 kg (chamber only)
Gross Weight: ≈ 530 kg (including tank and packaging)
Packaging Size: 2 650 mm × 1 200 mm × 1 670 mm
Installation Space Required: ≥ 8 m² room • Ceiling height ≥ 2.8 m • Door width ≥ 1.2 m
Ventilation Requirements: Ø 120 – 125 mm exhaust port to outdoors • Recommended 400 CFM fan • 0.5 m clearance around unit
Ambient Conditions: Room temp +15 °C – +24 °C • Humidity 30 – 60 %
Surface Requirement: Flat floor (≤ 0.5 % slope)
Certifications & Compliance: CE Certified • EN 13445 / EN 13458 Pressure Equipment • EN 55014-1/-2 & EN 61000 EMC • HTT Test Report HTT180708075ER
Safety Approvals: ECM Cryogenic Tank Certificate (valid until 2026)
Maintenance: Simple daily purge cycle • Periodic oxygen sensor check • No refrigerant maintenance required
Average Tank Endurance: ≈ 50 sessions per 200 L tank (depending on session length & ambient temperature)
Operating Cost Efficiency: High profit margin with low consumable cost and minimal electric usage
Included Accessories: 200 L LN₂ tank, 2 m stainless hose assembly, pressure gauge, valve set, training manual, operator guide
Recommended Uses: Sports recovery, rehabilitation therapy, pain management, spa wellness, beauty & metabolism support

Payment Terms	Details
Initial Payment	50% of the total Air Relax GlacierX 2.0 price (£17,475) due upon order confirmation
Monthly Instalments	Remaining 50% (£17,475) divided into equal payments over 12 months (£1,456 / month) or 24 months (£728 / month)
Interest Rate	0% — no finance charges, hidden costs, or setup fees
Included in Price	Professional delivery, installation guidance, operator training, and a 2-year warranty
Eligibility	Available for approved clinics, spas, gyms, wellness studios, and rehabilitation centres across the UK
No Hidden Fees	Transparent terms — no administrative, setup, or early-payment penalties
ROI Example	At £80 per session × 100 sessions per month = £8,000 monthly revenue. Typical 24-month payment = £728 → ROI achieved in 4–6 months with high-margin operation.
Next Step	Request a personalised quotation and finance plan — Contact us today

00:00:00:00

🎁🎄✨ FREE £1,045 BLACK FRIDAY GIFT ✨🎄🎁

VALUE £1,045 🎁

Air Relax PRO 4.0 Recovery System

+ Free Courier Shipping

+ Pay No Taxes

+ 2 Years Warranty

Have a question?

Key Metric	Air Relax GlacierX 2.0	Others
Cooling Technology	Direct-injection liquid nitrogen (LN₂)	LN₂ or electric compressor
Operating Temperature	–110 °C to –190 °C (adjustable)	–110 °C to –160 °C (typical)
Pre-Cool Time	≈ 1 minute	2–3 minutes
LN₂ Consumption (3-min session)	≈ 4 L (≈ 1.3 L/min)	4–6 L (≈ 1.3–2.0 L/min)
Cost per Session* (LN₂ €0.50–€1.50/L)	€2 – €6	€3 – €9
Sessions per 200 L Tank	≈ 50	≈ 30 – 40
Automation & Controls	PLC + 7″ touchscreen; Auto Pre-Cool → Treat → Vent	Basic display; partial or manual sequence
Safety Systems	O₂ monitoring, auto-purge, emergency stop, dual tank valves	Basic valves; O₂ monitoring optional on some units
Power / Energy Use	1.5 kW max (≈ 0.03 kWh/session)	1.5–3 kW (higher on electric units)
Noise Level	< 50 dB	60–70 dB
Warranty	2 years (EU service support)	1 year typical
Price	£34,950	£35,000 – €55,000+

AIR RELAX GLACIERX 2.0 CRYOTHERAPY TREATMENT GUIDE

The Air Relax GlacierX 2.0 Cryotherapy Suite delivers ultra-low-temperature exposure (-110 °C to -190 °C) to stimulate the body’s adaptive recovery response. Short, controlled sessions trigger vasoconstriction, metabolic activation, and endorphin release—making it an effective treatment for athletic recovery, rehabilitation, pain relief, and wellness optimization.

Swipe left to view more columns.

Treatment Application	Primary Benefit	Session Duration (min)	Suggested Frequency	Notes
Sports Recovery	Reduces lactic acid, speeds muscle repair	2–3	Post-training or competition	Up to 40 % faster recovery vs. ice baths
Muscle Soreness (DOMS)	Decreases inflammation & pain	3	Daily or alternate days	Improves range of motion
Joint Pain / Arthritis	Relieves swelling and stiffness	2–3	2–3× per week	Ideal for osteoarthritis & rheumatoid pain
Injury Rehabilitation	Accelerates tissue repair	2–3	As prescribed by therapist	Reduces post-surgical inflammation
Fibromyalgia / Chronic Pain	Reduces nerve sensitivity	2–3	3× per week	Improves mobility and comfort
Post-Exercise Recovery	Restores energy and circulation	2–3	After workouts	Boosts oxygenation and ATP levels
Beauty & Skin Tightening	Stimulates collagen & tone	1–2	2× per week	Improves elasticity & radiance
Weight & Metabolism Support	Activates brown fat, burns calories	3	3–4× per week	Up to 500 kcal burned per session
Stress & Mood Enhancement	Boosts endorphins, serotonin	2–3	As needed	Improves focus & emotional balance
Sleep Optimization	Reduces cortisol, calms nervous system	2–3	Evening use recommended	Promotes deeper rest
Skin Inflammation / Psoriasis / Eczema	Soothes redness & irritation	2–3	2–3× per week	Supports immune modulation
Immune System Boost	Increases white blood cell activity	2–3	Weekly or bi-weekly	Enhances resilience & energy
Post-Surgery Recovery	Reduces swelling & pain	1–2	As directed by physician	Improves circulation without strain
Rehabilitation Therapy	Improves mobility & joint health	2–3	2–3× per week	Complement to physiotherapy
Endurance Enhancement	Increases stamina & VO₂ max	3	Pre-event or weekly	Prepares athletes for peak output
Chronic Inflammation	Downregulates inflammatory markers	2–3	3× per week	Supports systemic healing
Anti-Aging & Longevity	Stimulates cellular regeneration	2–3	2× per week	Increases circulation and collagen
Post-Laser or Aesthetic Treatment	Reduces redness & downtime	1–2	Immediately post-procedure	Accelerates skin recovery
Mental Clarity / Focus	Boosts dopamine & alertness	2–3	Morning sessions	Natural energy lift
Men’s / Women’s Wellness	Hormonal balance support	2–3	Weekly	Improves vitality & circulation
