Red Light Therapy Panel
+ Free Courier Shipping
+ 3 Years Warranty
Have a question?
✨ Air Relax The Best Choice ✨
Choose the Air Relax Red Light Therapy Panel for unbeatable performance and value. With 9 full-spectrum wavelengths, industry-leading irradiance of ≥160 mW/cm², app-controlled features like dimming and pulsing, and a generous 3-year warranty, it’s engineered for real results. Unlike competitors, we also include a free RLT Knee Wrap (£179 value) with every order—making Air Relax the smartest choice in advanced red light therapy.
| Feature | Air Relax | Competitors |
|---|---|---|
| Wavelengths | 9 | 2-7 |
| Irradiance | ≥160 mW/cm² | 80-140 mW/cm² |
| Dimming | 1–100% | Limited |
| Pulse Frequency | 1–10,000Hz | Limited |
| App Control | Yes | Some |
| Lifespan | 80,000Hrs | <50,000Hrs |
| Warranty | 3 Years | 1–2 years |
| Certified | CE,ROHS,FDA, FCC | Varies |
| ✨ Free Gift ✨ | RLT Knee Wrap | No |
| Price | Best Value | ~130–140% More |

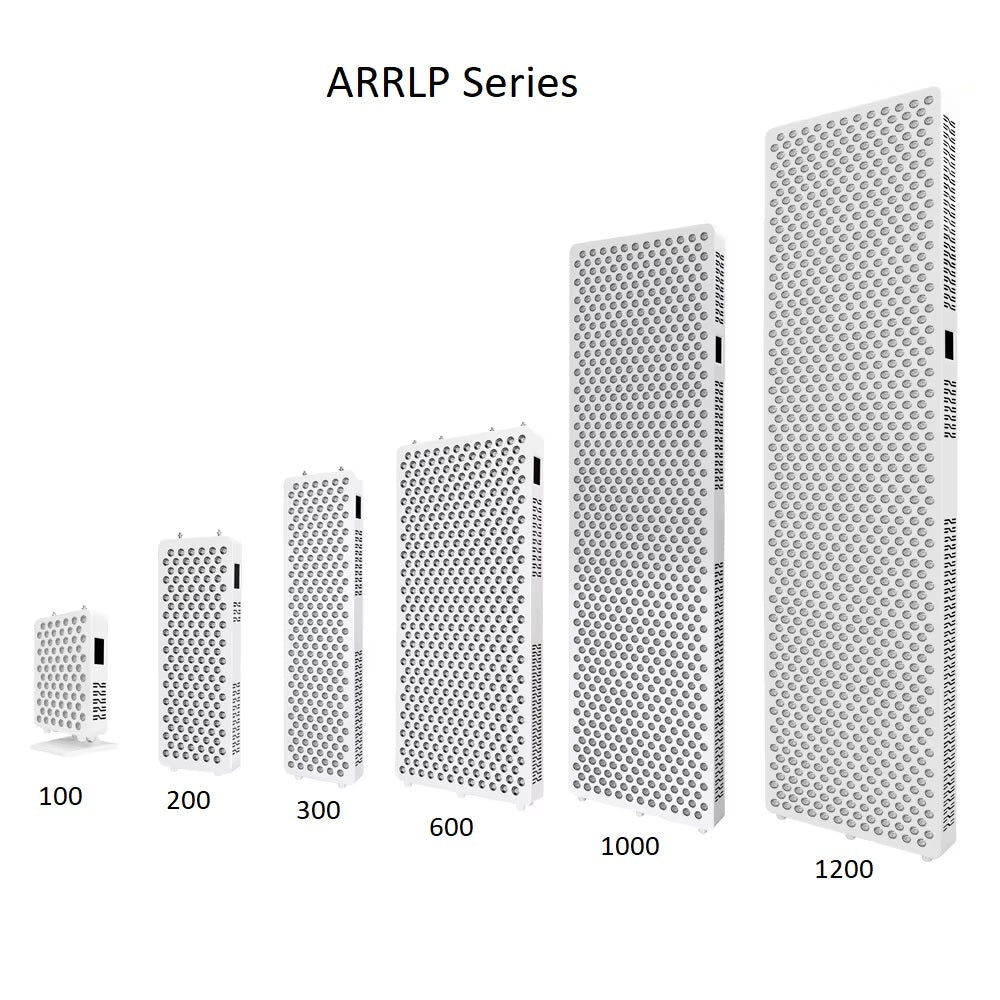

ARRLP Series Table
Swipe left to view more options.
| Specification | ARRLP100 £430 |
ARRLP200 £580 |
ARRLP300 £750 |
ARRLP600 £1,475 |
ARRLP1000 £2,425 |
ARRLP1200 £2,850 |
ARRLP2000 £3,895 |
|---|---|---|---|---|---|---|---|
| Centimeters | 32×23×6.5 | 64×23×6.5 | 92×23×6.5 | 92×42×6.5 | 153×42×6.5 | 180×42×6.5 | 189×59×6.5 |
| Inches | 12.6×9.1×2.6 | 25.2×9.1×2.6 | 36.2×9.1×2.6 | 36.2×16.5×2.6 | 60.2×16.5×2.6 | 70.9×16.5×2.6 | 74.4×23.2×2.6 |
| Dual Chips | 72 | 144 | 216 | 432 | 720 | 864 | 1152 |
| Total LEDs | 144 | 288 | 432 | 864 | 1440 | 1728 | 2304 |
| RED Light (630/660/670nm) | 54 | 108 | 162 | 324 | 540 | 648 | 864 |
| NIR Light (810/830/850/1060nm) | 72 | 144 | 216 | 432 | 720 | 864 | 1152 |
| Yellow + Blue Light (590/480nm) | 18 | 36 | 54 | 108 | 180 | 216 | 288 |
| Light Intensity | ≥160 mW/cm² | ≥160 mW/cm² | ≥160 mW/cm² | 160 mW/cm² | ≥160 mW/cm² | 160 mW/cm² | 160 mW/cm² |
| Power Output | 120W | 240W | 360W | 720W | 1200W | 1440W | 1650W |
| Weight (kg) | 3.9 | 6.0 | 8.5 | 15.3 | 27.5 | 32.1 | 44.2 |
| Weight (lbs) | 8.6 | 13.2 | 18.7 | 33.7 | 60.6 | 70.8 | 97.4 |
| Modularity | Stackable (23cm) | Stackable (23cm) | Stackable (23cm) | Stackable (42cm) | Stackable (42cm) | Stackable (42cm) | Stackable (59cm) |
| Ideal For | Face, joints, small areas | Back, arms, mid-body | Abdomen, legs, back | Full-body therapy, athletes | Full-body therapy, spinal support | Full-body therapy for taller users | Professional clinics, full-body intensive |
RED LIGHT THERAPY GUIDE

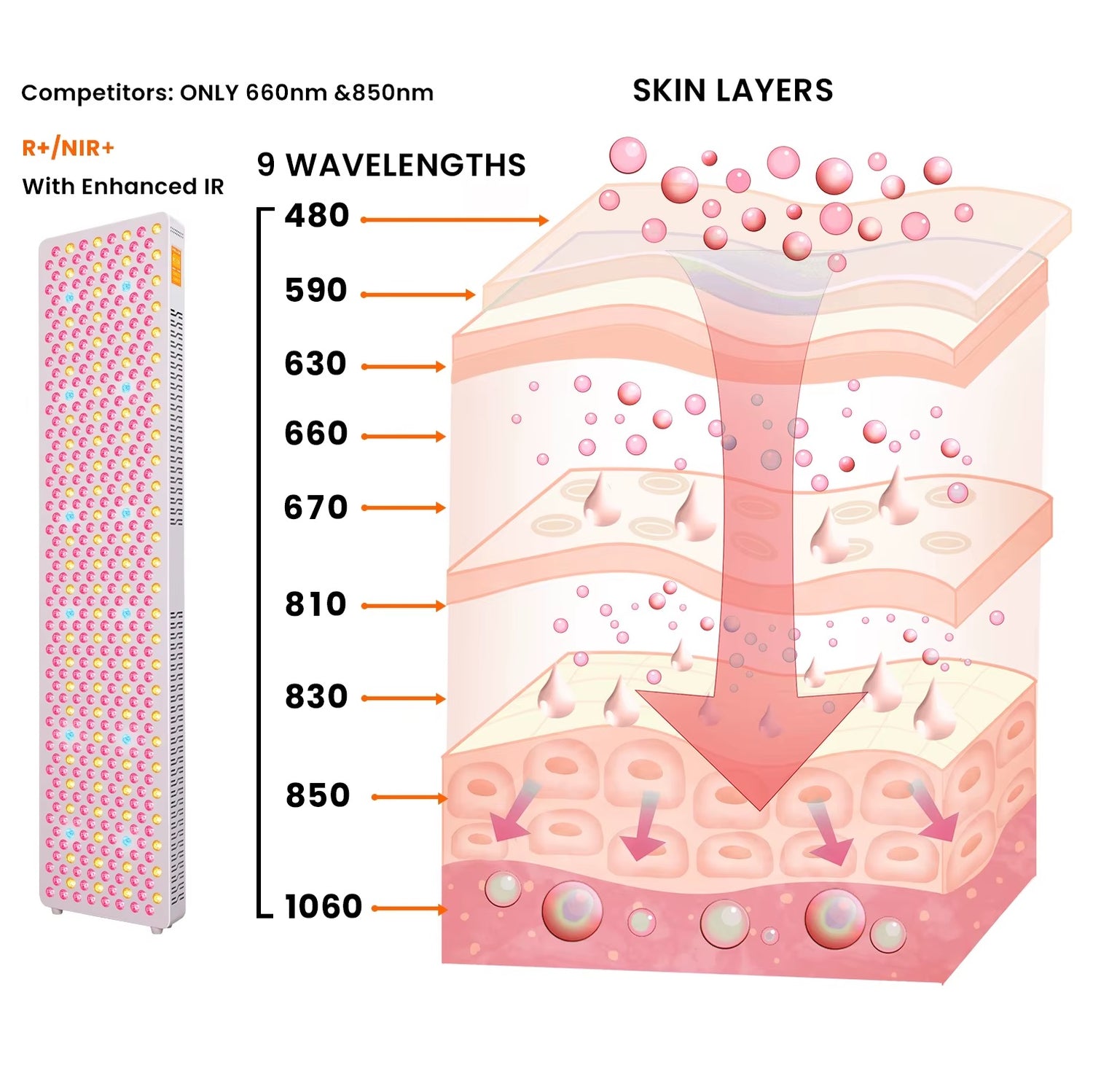

This guide shows you how to get better results from your red light therapy by adjusting four key settings: Wavelength decides how deeply the light goes into your body — 660nm is great for skin and surface layers, while 850nm reaches deeper into muscles and joints. Frequency (how fast the light pulses) can affect how cells respond and help reduce heat buildup during sessions. Dimmer controls the brightness — use lower settings for sensitive areas, higher for deeper treatment. Time sets the length of the session — the right time ensures you get the full benefit without overdoing it.
Swipe left to view more columns.
| Treatment Goal | Wavelength | Pulsing (Hz) | Dimmer (%) | Time (min) | Notes |
|---|---|---|---|---|---|
| Skin Rejuvenation | 660 | 0 (CW) | 80–100 | 10–20 | Boosts collagen, reduces wrinkles |
| Anti-Aging (Face) | 660 | 0 or 10–20 | 50–75 | 10–15 | Use moderate dimmer for delicate areas |
| Muscle Recovery | 850 | 100–300 | 100 | 15–30 | Deep tissue penetration, post-workout |
| Pain Relief (Chronic) | 660 + 850 | 250–1000 | 100 | 20–30 | High pulse rate, sustained exposure |
| Joint Pain | 810 + 1060 | 10 | 90% | 20 | Deep penetration for joint relief |
| Arthritis | 810 + 1060 | 10 | 90% | 20 | Reduces pain and inflammation |
| Wound Healing | 660 | 10–100 | 80–100 | 10–15 | Shorter sessions, multiple times/day |
| Systemic Inflammation | 660 + 850 | 100–300 | 80–100 | 15–30 | Whole-body sessions ideal |
| Lymphatic Drainage | 660 + 850 | 50–150 | 70–90 | 15–25 | Gentle pulsing for circulation support |
| Mood / Depression | 660 | 1–10 | 60–100 | 10–20 | Morning sessions best |
| Brain Fog / Cognition | 850 | 10–40 | 80–100 | 15–20 | Targets brain via near-infrared light |
| Sleep Support | 660 | 1–2 | 40–60 | 10–15 | Use in evening for calming effect |
| Fat Loss | 660 + 1060 | 100 | 100 | 20 | Enhances circulation and fat metabolism |
| Post-Surgery Recovery | 660 + 850 | 10–300 | 80–100 | 15–20 | Use daily or as needed |
| Acne / Skin Conditions | 660 | 0–50 | 80–100 | 10–20 | Anti-bacterial, anti-inflammatory |
| Redness / Inflammation | 590 | 10 | 40% | 15 | Soothes and calms visible irritation |
| Severe Acne | 480 + 630 + 810 | 0 | 60% | 20 | Full-spectrum acne targeting |
| Chronic Fatigue | 830 + 1060 | 100–500 | 80% | 20 | Boosts mitochondria, increases energy |
| Scar Healing | 630 + 810 | 0 | 50% | 20 | Accelerates tissue remodeling |
| ATP Regeneration | 630–660 + 850 | 100 | 70% | 20 | Stimulates ATP production and cellular energy |
| Moderate Acne | 480 + 630 | 0 | 50% | 20 | Blue kills bacteria, red heals |
| Pigmentation | 590 + 630 | 0 | 60% | 15 | Reduces spots, balances tone |
| General Skin Care | 630 + 810 | 0 | 60% | 12 | Routine maintenance and glow |
| Inflammation (Skin) | 670 + 810 | 10 | 60% | 15 | Deep dermal inflammation support |
| Long Covid Support | 810 + 1060 | 40 | 80% | 20 | Immune recovery and energy |
| Hair Regrowth / Scalp | 630 + 660 | 10–20 | 80% | 15–20 | Stimulates follicles, increases blood flow |
| Nerve Repair / Neuropathy | 810 + 1060 | 50–100 | 80% | 20 | Improves nerve signaling and pain |
| Thyroid Support | 660 + 850 | 10 | 70% | 10–15 | Used for underactive thyroid protocols |
| Eye Health (Low Power) | 660 | 0 | 40% | 3–5 | May support retinal metabolism (use caution) |
Optional Stands for ARRLP Panels

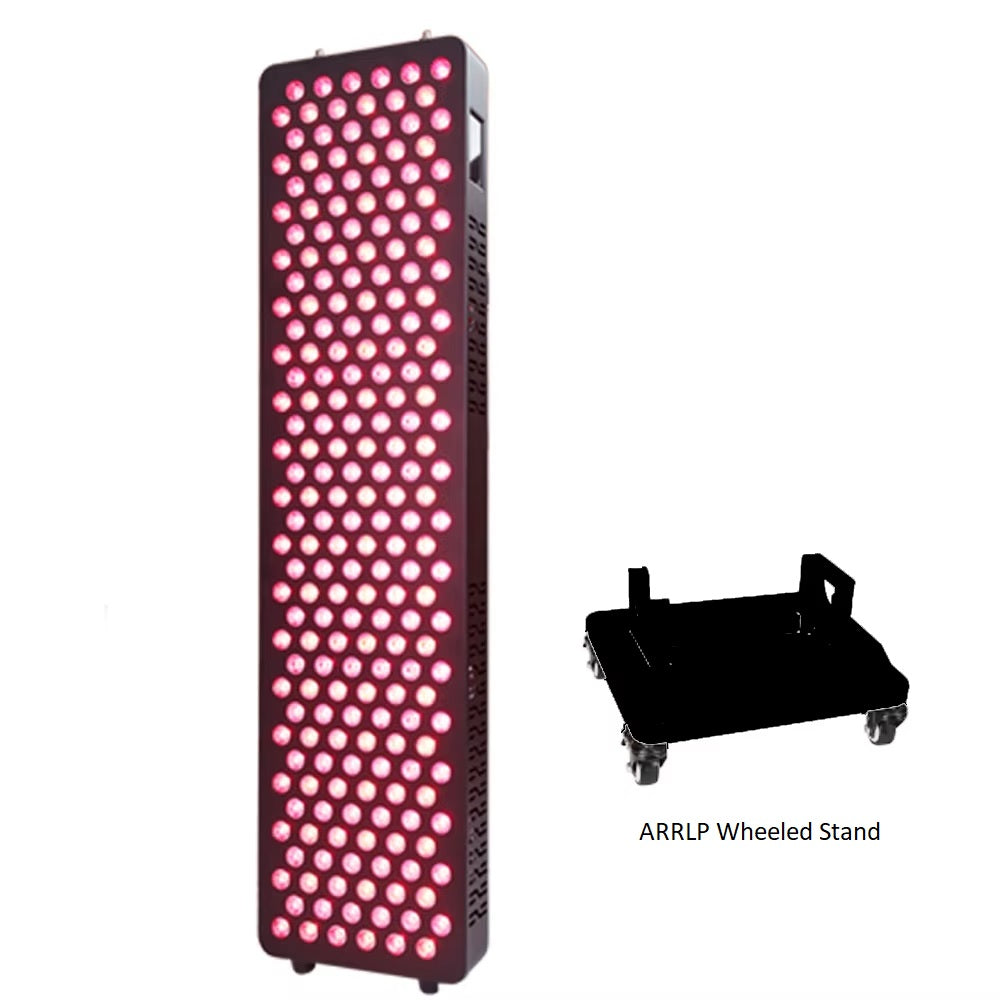

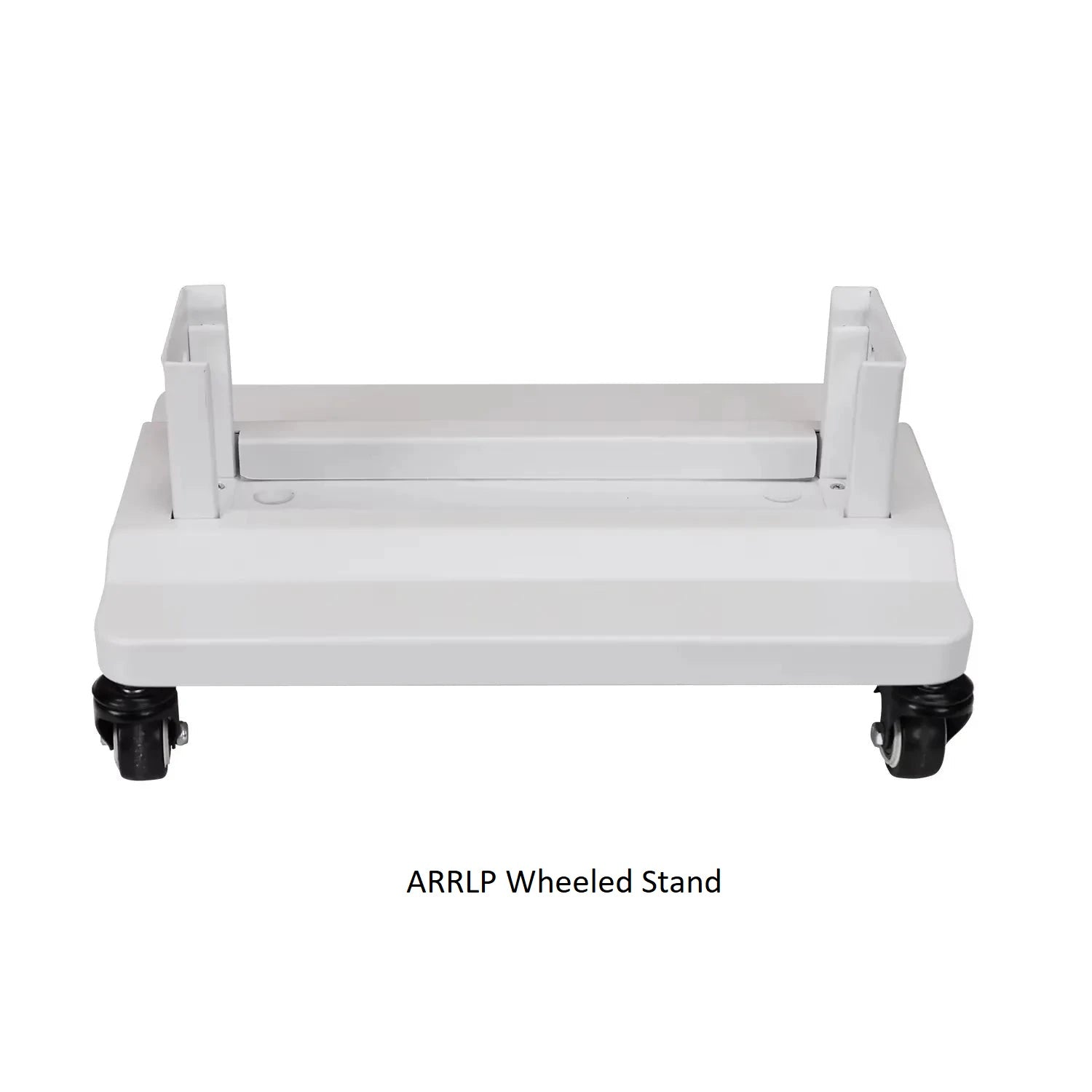

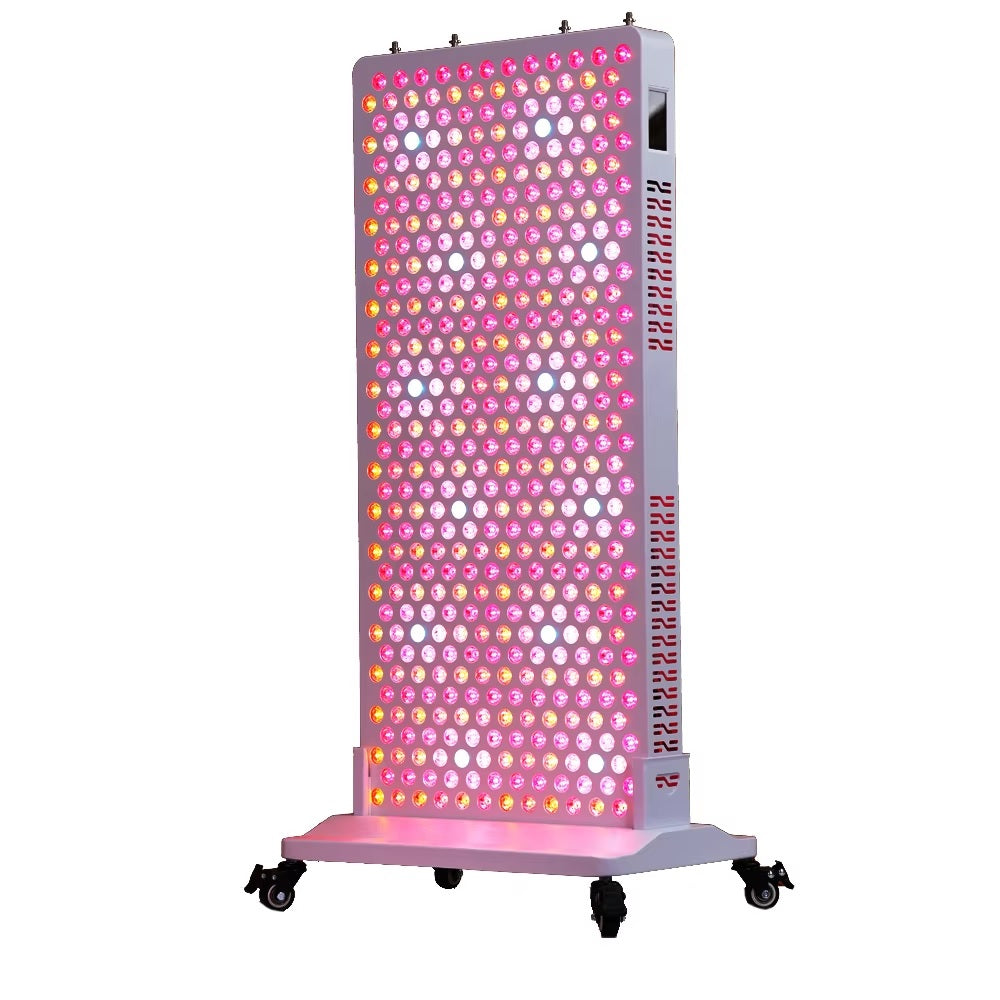

The ARRLP series offers a range of optional stand systems designed to provide greater flexibility and convenience during your red light therapy routines. The ARRLP Wheeled Stand is compatible with all ARRLP models and features four smooth-rolling, lockable wheels—ideal for moving your panel between spaces or adjusting angles with ease.

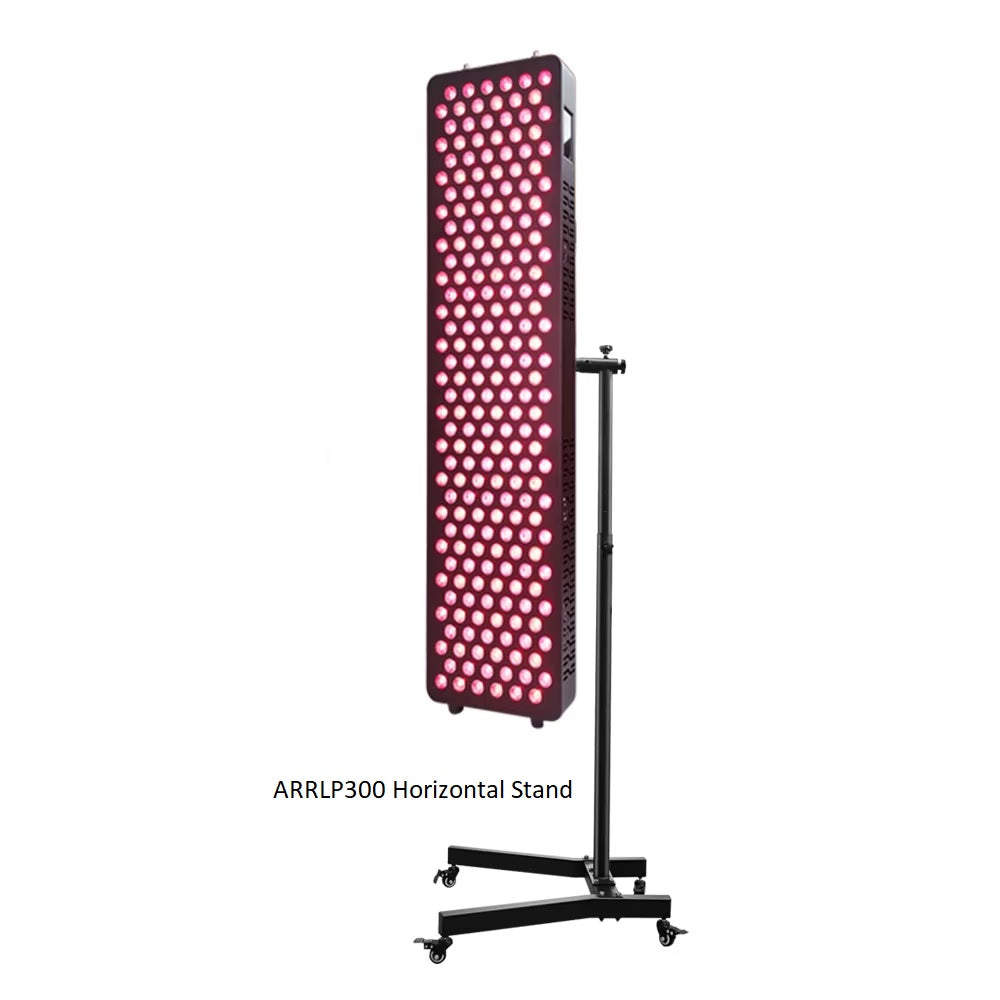

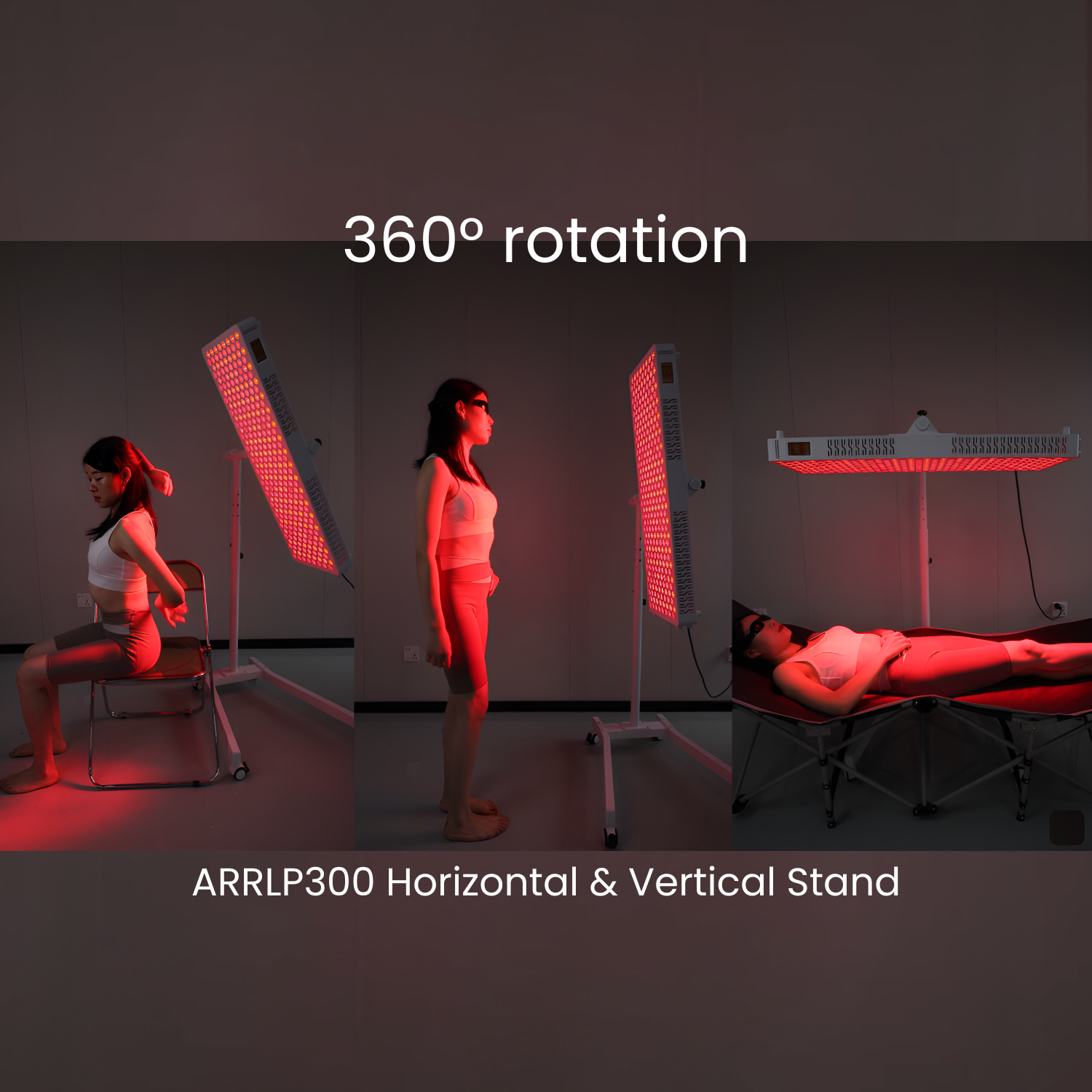

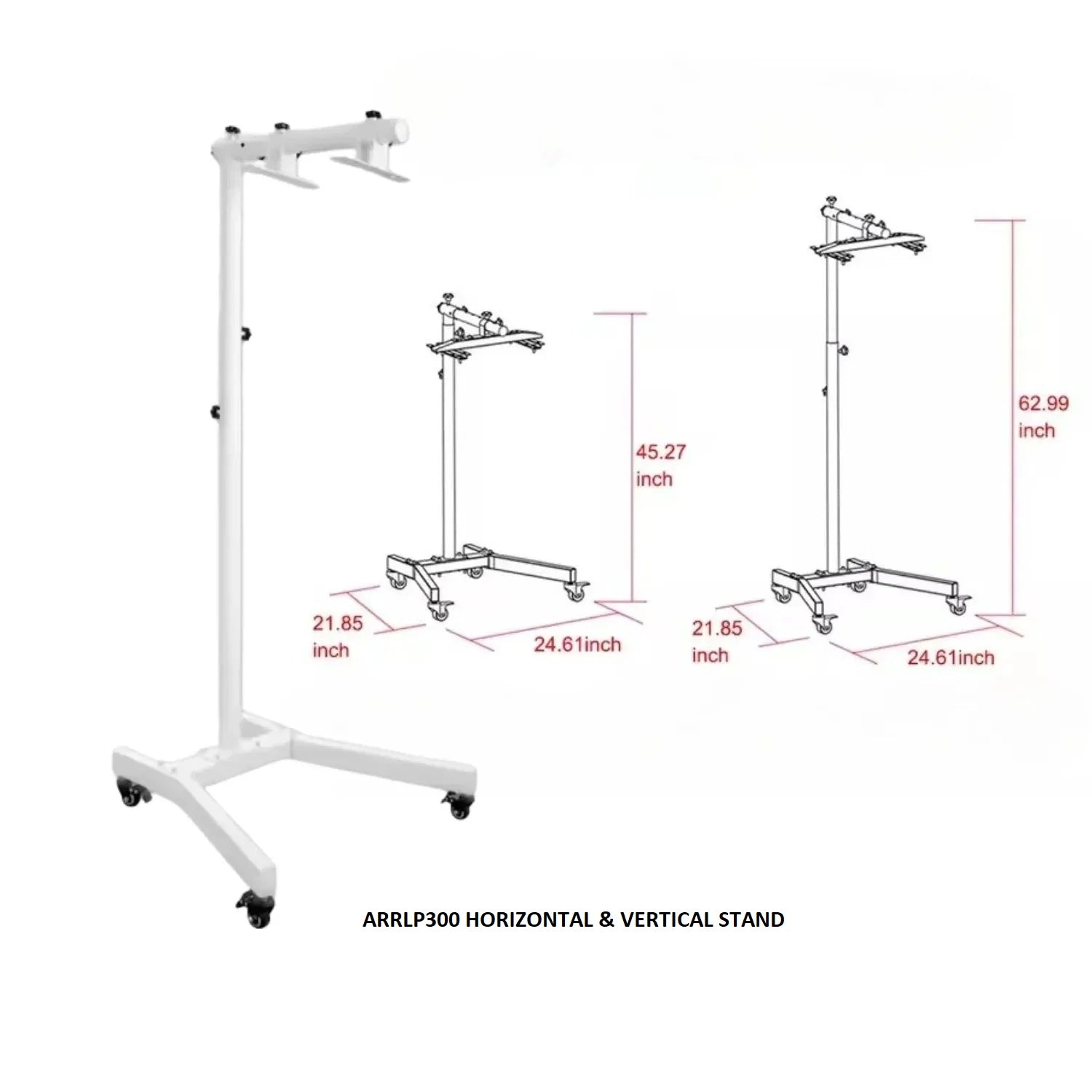

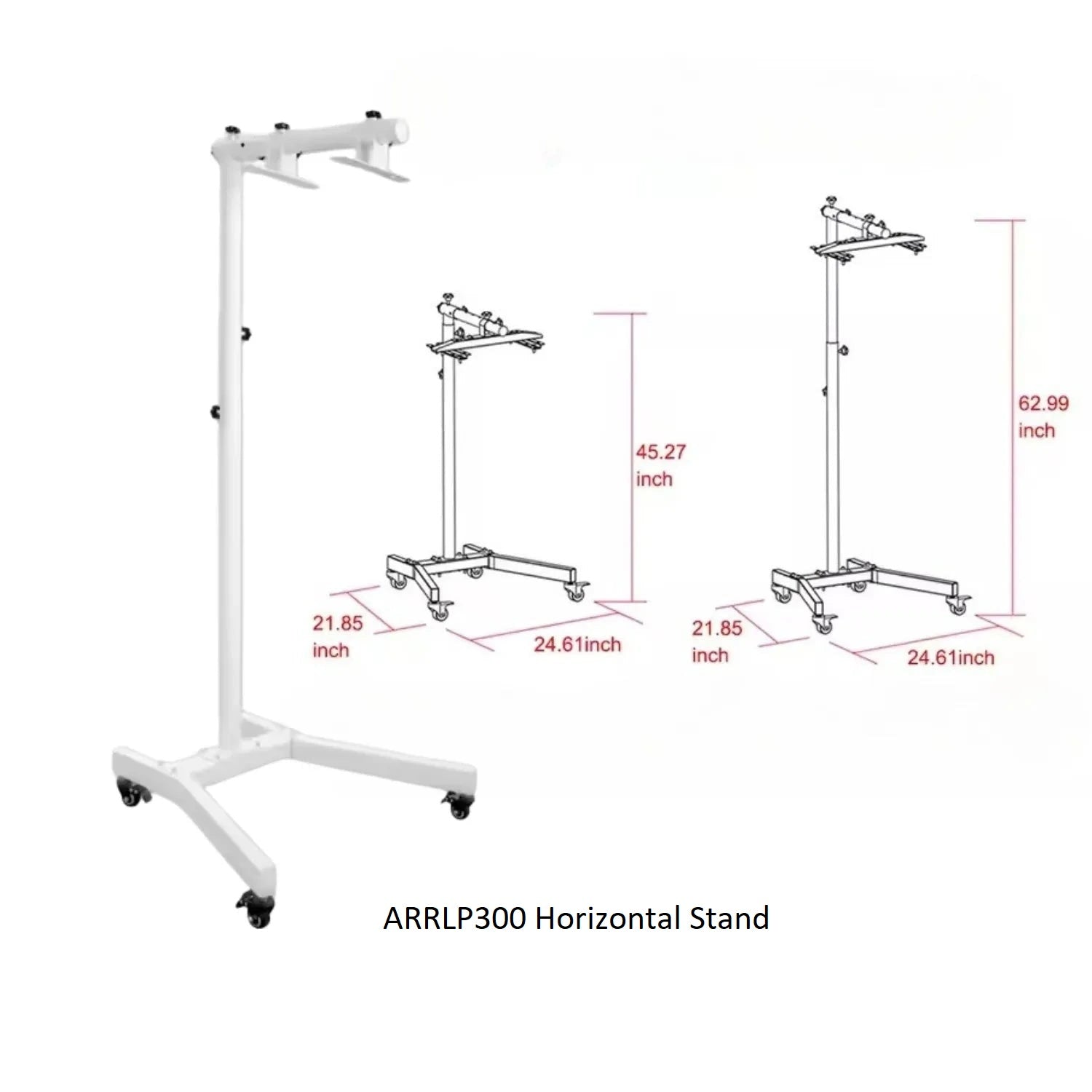

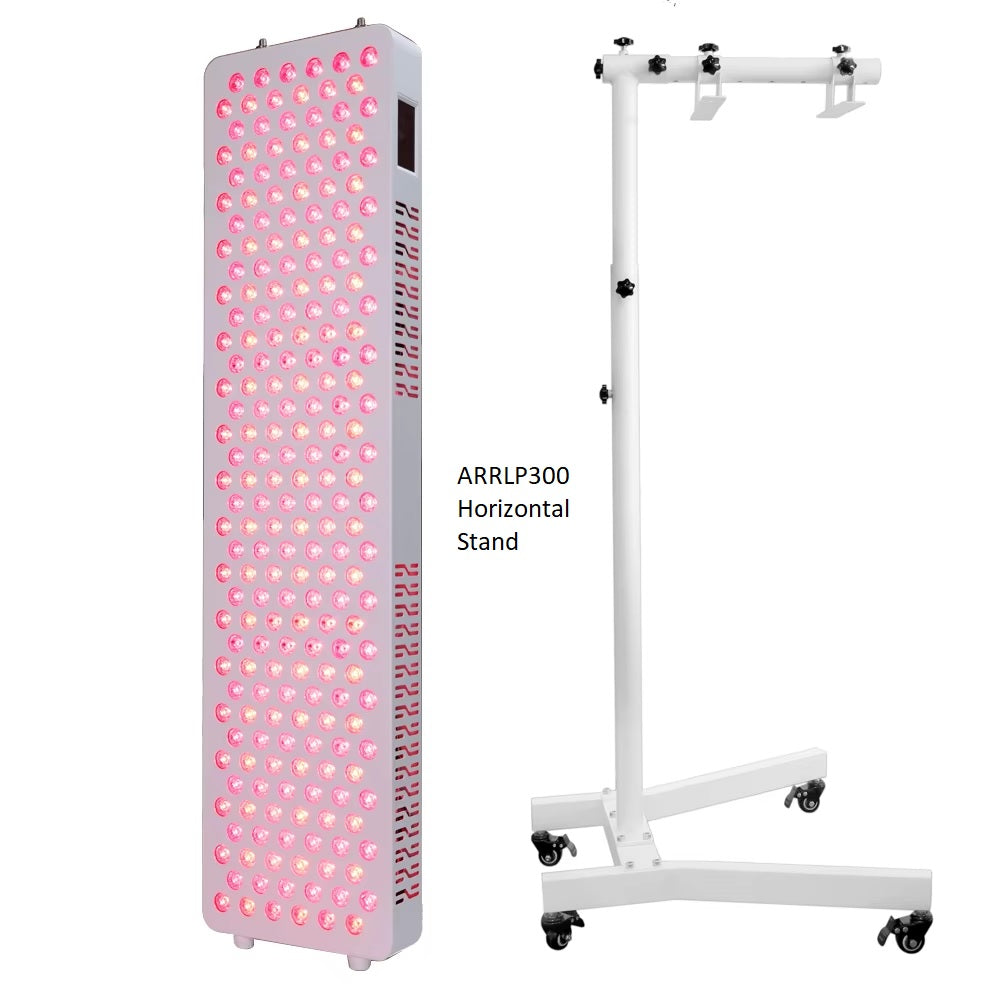

For more compact setups, the ARRLP300 Horizontal Stand supports ARRLP200 and ARRLP300, allowing you to position the panel horizontally and tilt it vertically—perfect for use over beds, massage tables, or relaxation spaces.

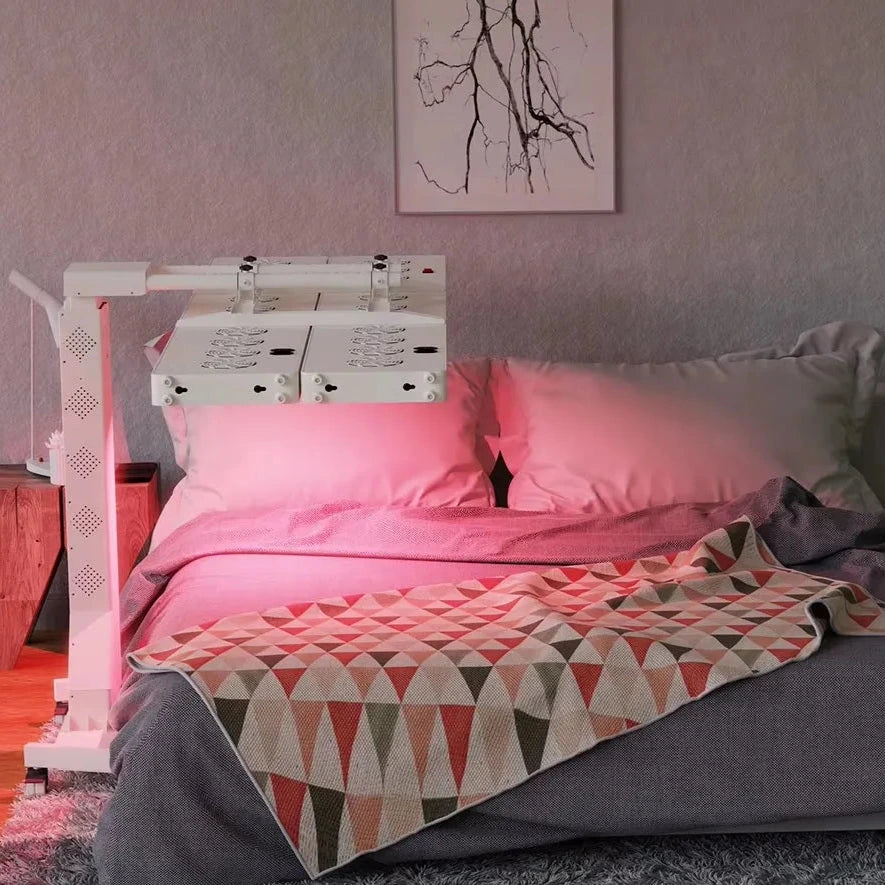

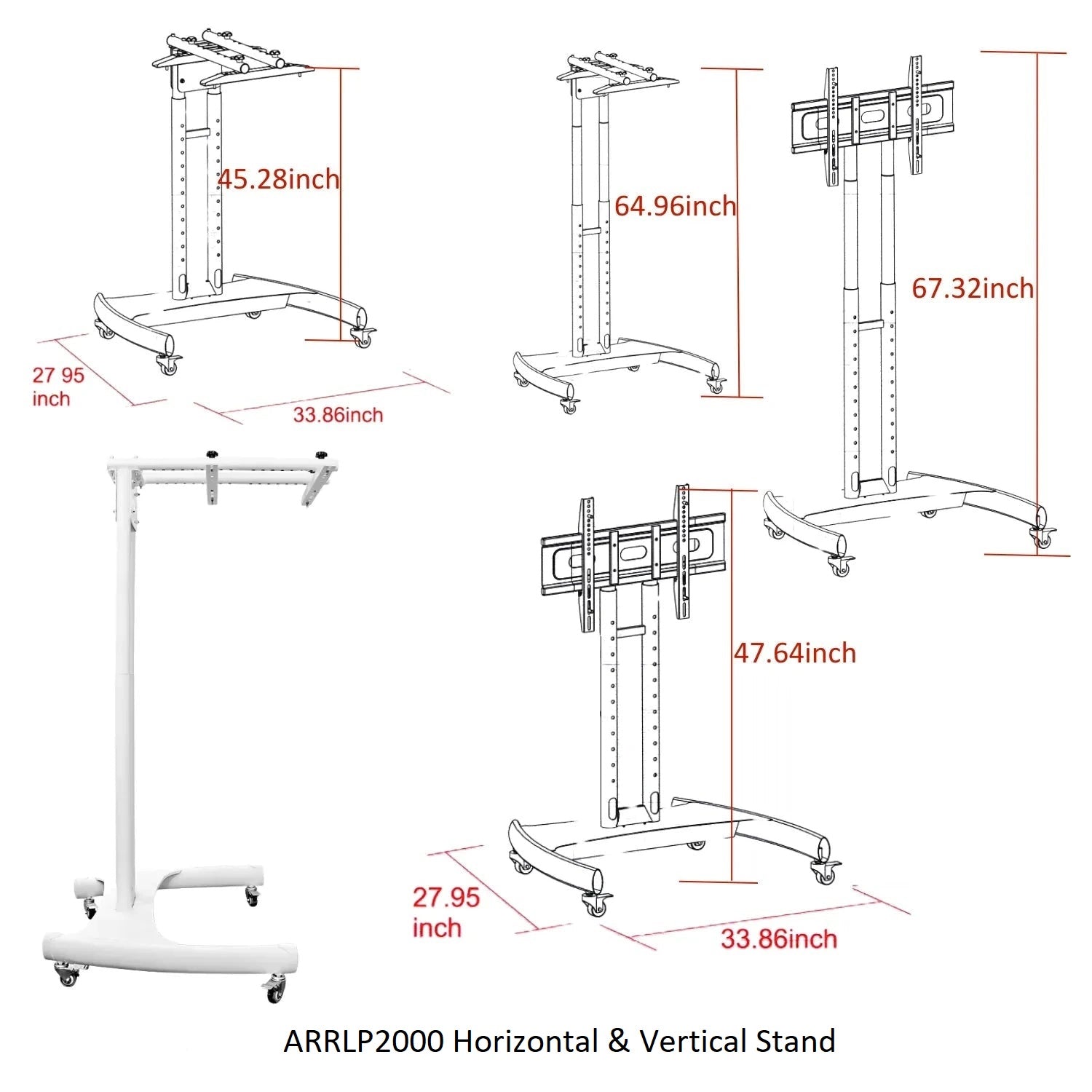

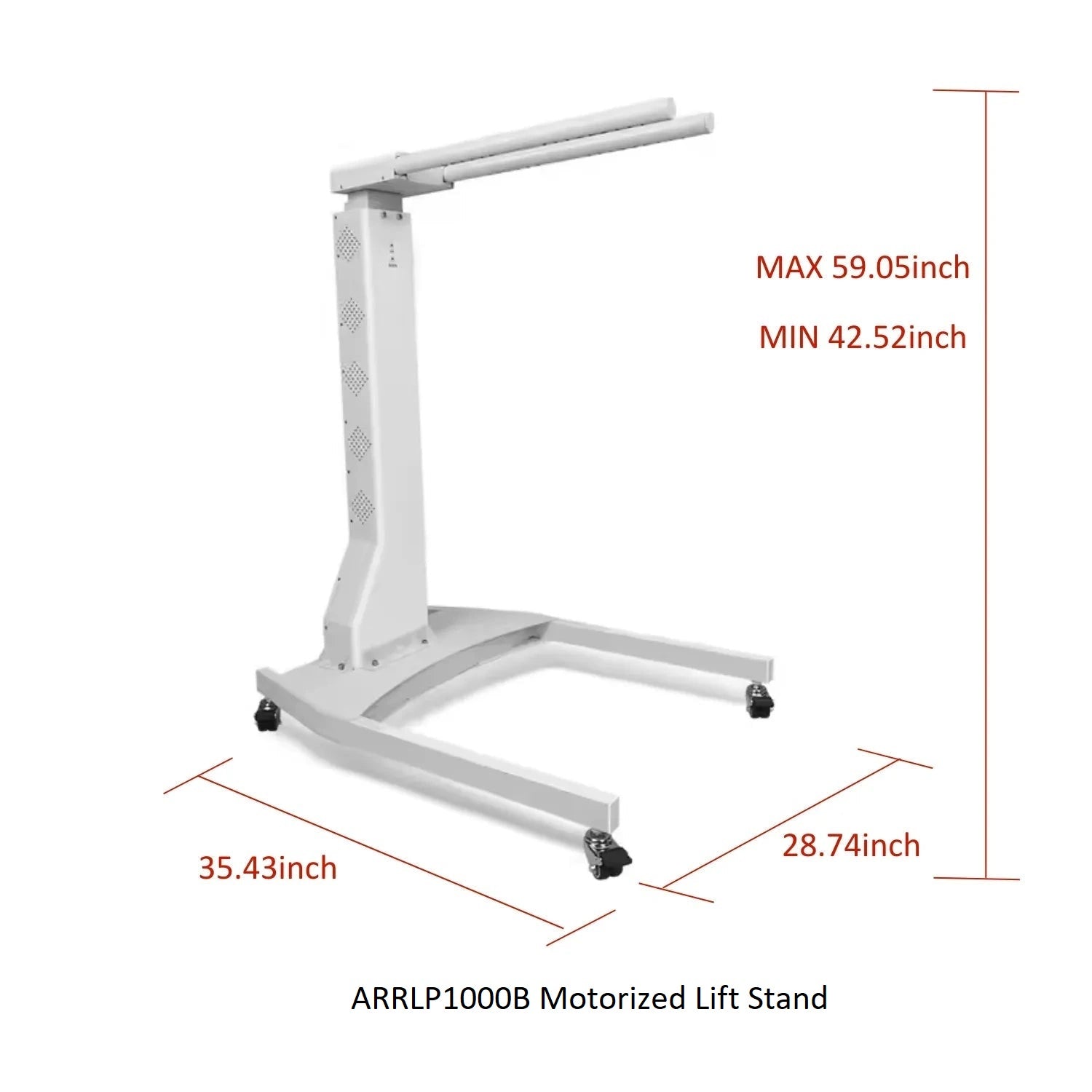

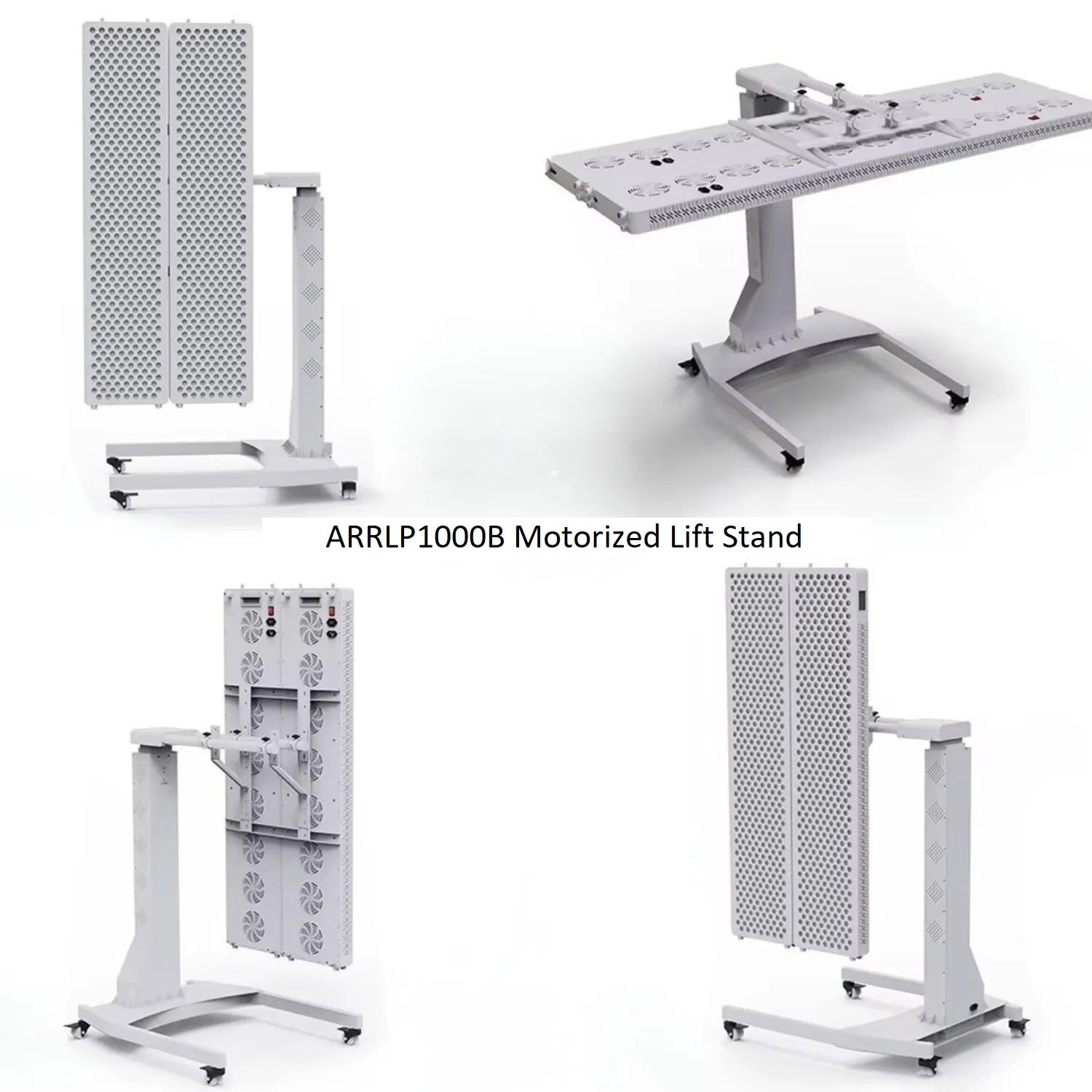

For users seeking versatile positioning options, the ARRLP2000 Horizontal & Vertical Stand is compatible with ARRLP600 and larger models, offering the flexibility to set the panel vertically or horizontally based on your environment. For an effortless experience, the ARRLP1000B Motorized Lift Stand provides electric height adjustment via remote control—ideal for gyms, wellness centers, or home users looking for hands-free customization.
Whether at home, in fitness spaces, or wellness environments, these stands allow you to easily adapt your ARRLP panel for maximum comfort, precision, and convenience during your red light therapy sessions.
